Configure Eclipse for Arcobjects SDK for Java

Configure Eclipse for Arcobjects SDK for Java

This post will guide you on how to instal and configure arcobjects sdk for java.

After installing you’ll get the folder of DeveloperKit10.2 in C:\Program Files (x86)\ArcGIS\DeveloperKit10.2 or whatever your installed directory is.



Now install Eclipse ide after Eclipse is installed we have to import the arcobjects library or install it into eclipse.

Open Eclipse

Go to Help à Install New Software à Click on the Add button

In Name Enter Arcobjectslibrary à click on Local button and select the path

C:\Program Files (x86)\ArcGIS\DeveloperKit10.2\java\tools\eclipse_plugin\arcgis_update_site\arcobjects

Or whatever your installed directory of ArcGIS is.

And click ok. It will take some time and might give you error that arc gis palette cant be installed So for that you have to install swing in Eclipse first before installing arcobjects.

(Installing Swing and other components is easy Just open eclipse à Help à Instal New Software à click on the drop down and select the site of your eclipse version as in my case its kepler)

Under General Select Swing designer and AWT designer and click install. Now it’ll take some time to install.

After its installed try again installing arcobjects and this time it’ll get installed. How ever if the Pallete does not gets installed then no worries J

Okay now Lets get started

For ArcGIS 10.0 and older versions I’ll recommend you to use 32 bit eclipse and 32 bit Java but for ArcGIS 10.1 or newer it don’t really matter. I am using 10.2 ArcGIS and for that I am using 64 bit eclipse and for Java I am using 64 bit but for eclipse in general but for arc objects you require 32 bit I’ll tell you how you can manage this.

We’ll start by running a small sample to show you how to run it and also to help you cater the basic error which might occur. After that I am going to show you about how to make a basic add in (toolbar button dockable window etc) in ArcObjects for ArcGIS.

ArcObjects Development, Developing Stand Alone GIS Desktop Applications and Developing Addins for ArcGIS Desktop

Develop Addin for ArcGIS Part 1

Develop Addin for ArcGIS Part 2

Develop Addin for ArcGIS Part 2

Develop Addin for ArcGIS Part 2

To see the part 1 click here

In this post we'll develop Add in for ArcGIS.
 We have configured the Eclipse project for Addin Development using Arcobjects and also configured the Java for it.
To configure Project for ArcObject see this post.

We have the project setup for this. you can see the config.xml file in its addin view (we'll talk about the views later). This view helps alot and makes sure the consistency and their are no errors in config file. Through this we can add different buttons, tools, meus, system tools, dockable window, palette etc and also can organize them.

Click on the source tab at the bottom of config.xml and you can see the xml source code.

Click back to addin view.

Add the details of project Name company etc etc What they are ? you can find help regarding this in esri resource help.

http://resources.arcgis.com/en/help/arcobjects-java/concepts/engine/

Click on add button and Add the toolbar.

Give name and id. This id will be used in our java classes later.

Add some System tools e.g zoomin, pan etc.

After Adding Click on Toolbars and you'll see that it refreshes it self and you'll see the added system tools are shown under your toolbar.

Now we'll add custom functionality. Click on Add and select button. A new button will be created. you have to add this button to your toolbar explicitly by again selecting the toolbar and adding the new button to right pane.

Fill in the details

Click on Class button and press finish.

Class will be formed

Enter the following code.

Add the button to toolbar.

You can see the button added to toolbar

On Config.xml press export to add addin to ArcGIS. Now there are different methods to deploy your addin. I will follow the simple approach of direct deploying.
You can see the list of deploying options and details here
http://resources.arcgis.com/en/help/arcobjects-java/concepts/engine/#/How_to_deploy_your_add_in/0001000006sp000000/

You can give the path of C:\Users\Blabla\Documents\ArcGIS\AddIns\Desktop10.2 and press finish. A warning may appear press ok.

Open ArcMap and click on customize and then click on addins and see the installed addin.

Again click on customize and the click on toolbars and add you toolbar.

You can see our toolbar.

Click on the button and see the Hello World ;)

Develop Addin for ArcGIS Part 1

Develop Addin for ArcGIS Part 1

In this post we'll develop a basic addin for ArcGIS using ArcObjects SDK for Java.

Open Eclipse and Create new project
File -> New -> Other

Then Select Esri Templates -> ArcGIS Extensions -> Desktop -> ArcMap Add In Project

Then On New Addin Project window  and click on Configure JRE (We are going to add ArcObjects compatible JRE to eclipse it comes installed with ArcGIS desktop after that we'll set the execution environment)

Click on Add

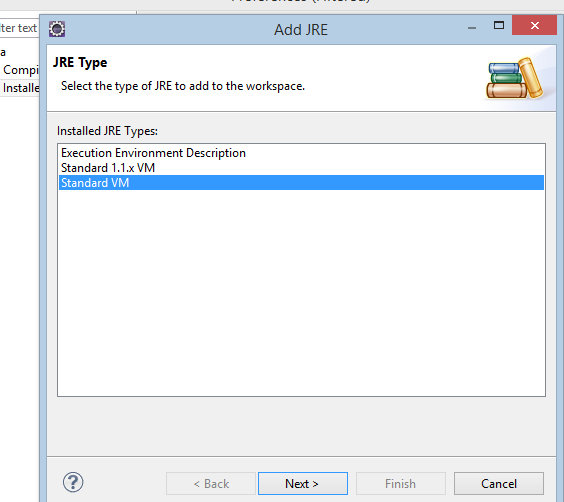

Select Standard VM

Click Next

Click on Directory and enter the name and following path as shown in figure

Click finish

Again click on configure JRE

Select installed JREs and click on execution Environments

Select Java SE 1.6 and Select the previously added JRE (Java ArcGIS)

Click Ok and Click Next

Click on libraries tab

Click Add libraries

Select ArcObjects Libraries
(for adding Arcobjects library to eclipse see this tutorial)

Click finish

You can see the following on your screen. Everything is configured.

For next part see the next tutorial here

ArcObjects Development, Developing Stand Alone GIS Desktop Applications and Developing Addins for ArcGIS Desktop

ArcObjects Development, Developing Stand Alone GIS Desktop Applications and Developing Addins for ArcGIS

This post is going to discuss what things are required for Developing Stand Alone GIS desktop Applications or for developing Addins (plugins) for ArcGIS.

We'll be using ArcObjects SDK for Java. Esri also facilitates its user by giving a complete detailed resource for SDK. here are some of the important links

http://resources.arcgis.com/en/help/arcobjects-java/concepts/engine/

Why i am writing this post is because of the reason that for beginners this resource will not be of much help. This blog aims to help developers who are in their learning phase. So I'' tell you the basic start up tips for this arcobjects development.

Pre-requisites required :
Basic Understanding of Java
Eclipse IDE configured to be used for arcobject developments
To configure eclipse see this post

Outline:
1. How to check errors, how to enable console of ArcGIS, how to log errors.

2. Develop Addin for ArcGIS

3. Develop Stand alone GIS desktop application.
4. Coming Soon
